Advanced Suction Capability
The increase in channel size to 2.2 mm increases suction volume compared to conventional scopes with a 2.0 mm channel.
Wide Viewing Angle
The viewing angle of this ultra-slim scope has been increased to 140 degrees, matching the wide field of vision of larger gastroscopes even in restricted spaces.

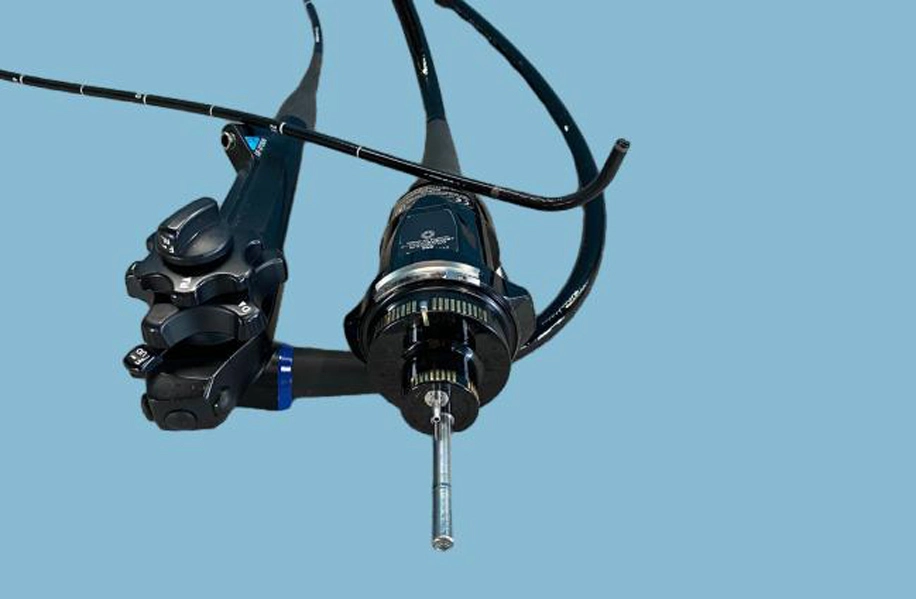

Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
Field of view 140°
Direction of view Forward viewing
Depth of field 3-100 mm

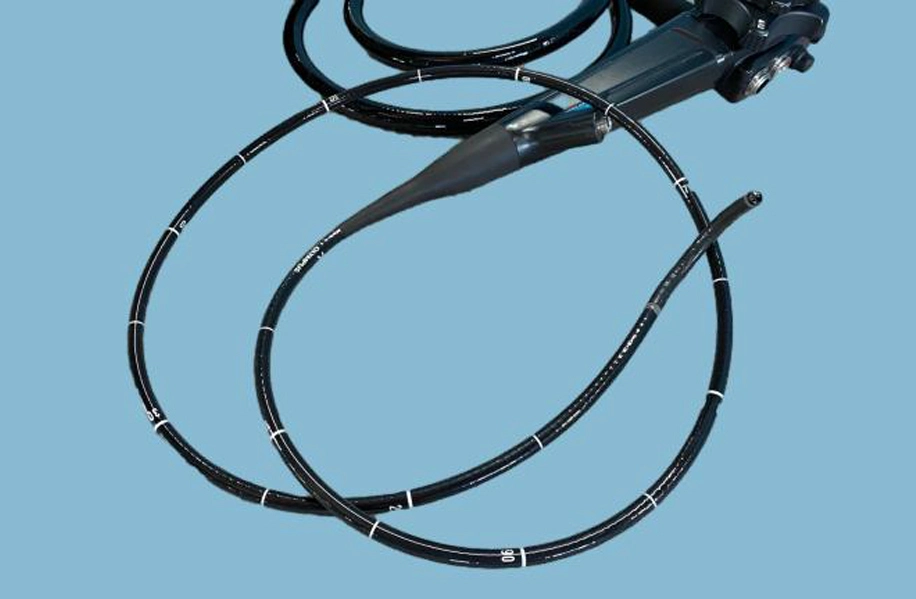

Insertion Section Distal end outer diameter 5.4 mm

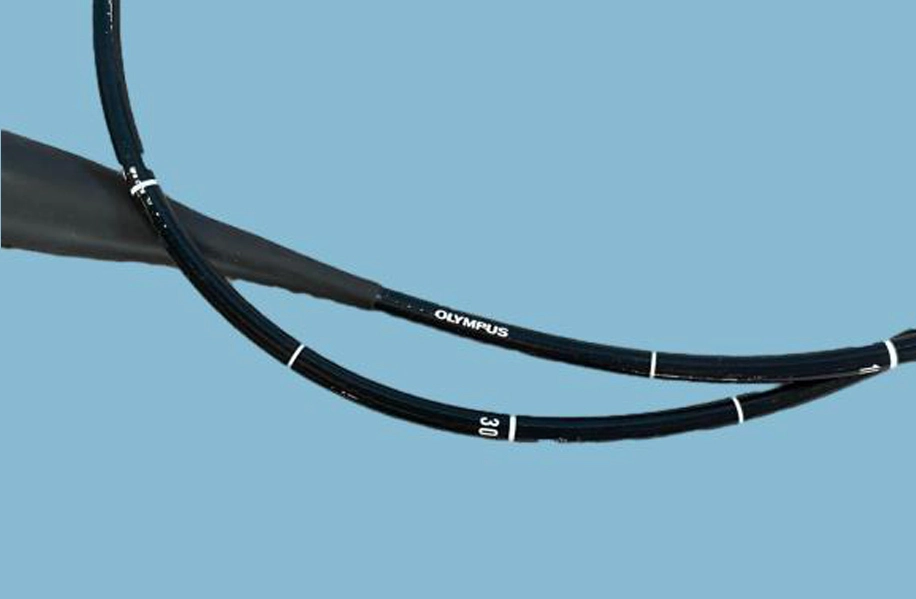

Insertion tube outer diameter 5.8 mm
Working length 1,100 mm

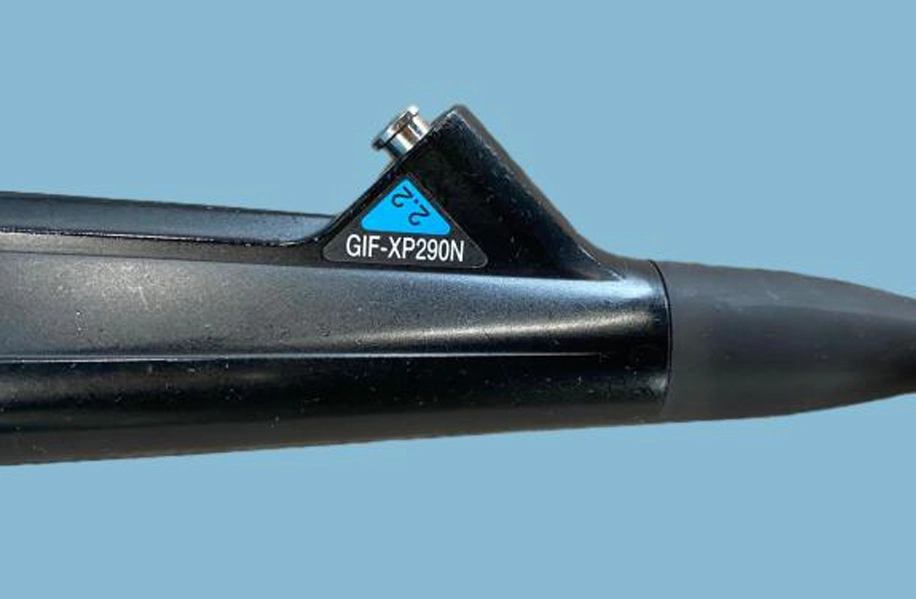

Instrument Channel Channel inner diameter 2.2 mm
Minimum visible distance 2.0 mm from the distal end

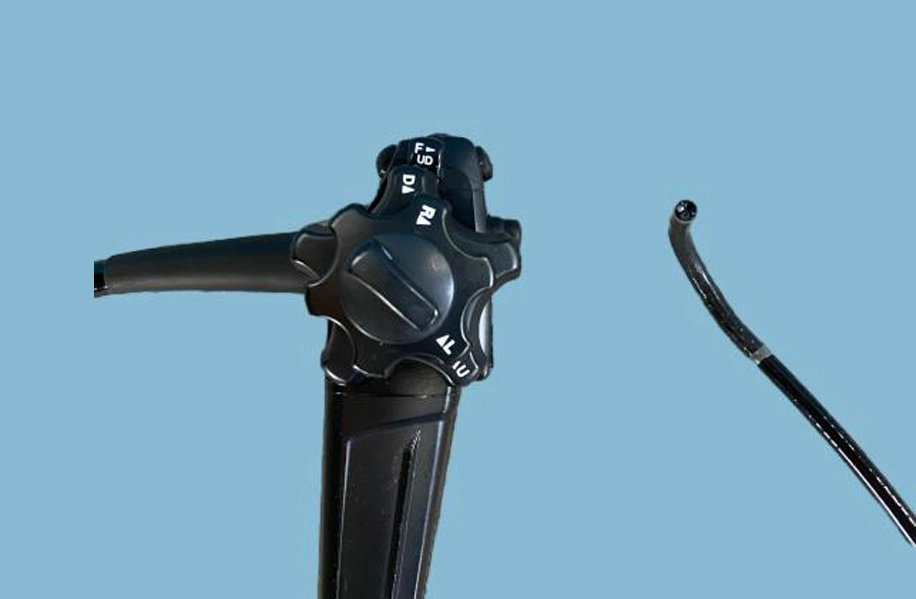

Bending Section Angulation range Up 210°, Down 90°
Right 100°, Left 100°
Total Length 1,420 mm
Compatible EVIS LUCERA System Video System Center OLYMPUS CV-290
Xenon Light Source OLYMPUS CLV-290SL, CLV-290
