Olympus OTV-S7H-1D-F08E camera

Key Specifications of Olympus OTV-S7H-1D-F08E Camera

Camera Type:

Video Camera System: The OTV-S7H-1D-F08E is a high-definition video camera system designed to capture high-resolution images during endoscopic and laparoscopic procedures.

Image Resolution:

The camera system provides Full HD resolution (1920 x 1080 pixels), offering high-definition imaging for clear, sharp, and detailed visuals. This allows surgeons to view structures with high clarity during diagnostic and surgical procedures.

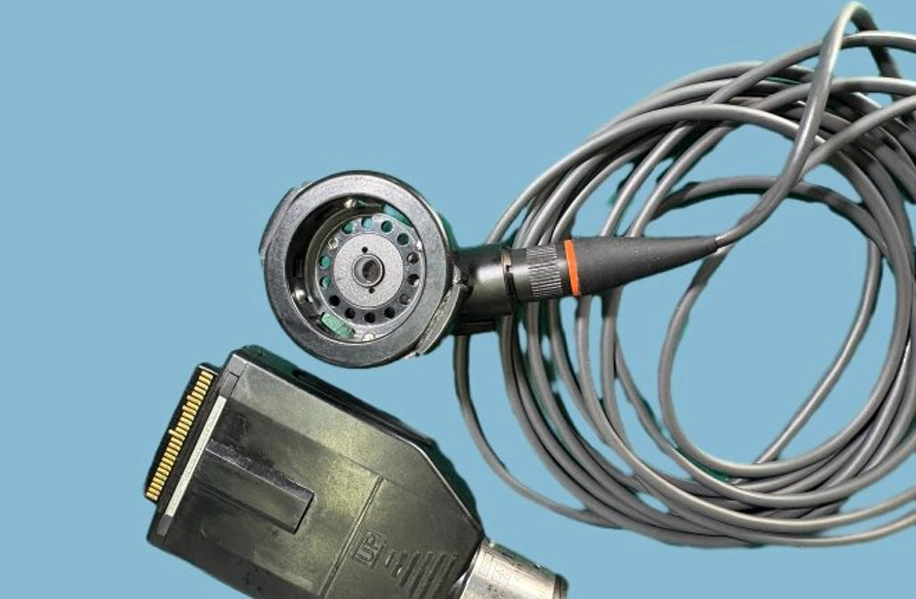

Camera Head:

The camera includes a compact and ergonomic camera head that can be easily attached to various Olympus endoscopes or laparoscopes. The head is designed to be lightweight and comfortable to use for long durations.

It may have features like a focus ring or zoom control for adjusting the image as needed during surgery.

Sensor Technology:

The CMOS sensor technology in the camera provides high-quality imaging with enhanced color reproduction, brightness, and contrast. The sensor ensures that even under low light conditions, the system can still deliver high-quality images.

Color Reproduction:

The camera system features enhanced color reproduction with precise white balance and real-time color correction. This ensures the accurate depiction of tissues and organs, which is crucial for successful diagnosis and surgical outcomes.

Field of View:

The camera allows for a wide field of view, which is essential for minimally invasive surgeries where a large area needs to be visualized through small incisions.

Compatibility:

The OTV-S7H-1D-F08E is compatible with the Olympus EVIS EXERA III system, integrating seamlessly with Olympus’s advanced endoscopic equipment, including endoscopes, laparoscopes, and light sources.

It is also designed to work with a variety of Olympus video processors and light sources to provide optimized lighting and imaging during procedures.

Light Source Integration:

The camera system is typically paired with the Olympus CLV-190 light source, which provides bright and consistent illumination for clear visualization during procedures.

The light sources can be easily adjusted to suit the specific needs of the surgical environment.

Ergonomics and Usability:

The camera head is designed to be ergonomic, allowing clinicians to handle it comfortably during procedures. Its design minimizes the physical strain on the clinician and promotes stability and control during use.

The camera system often features an intuitive control panel for zooming, focusing, and adjusting brightness, making it easy to use during dynamic procedures.

Video Output:

The system supports multiple video outputs for integration with monitors and recording systems, enabling surgeons to display high-definition images on large screens and capture video footage for documentation or teaching purposes.

Durability and Sterilization:

The camera system and its components are designed for repeated use in sterile environments. The camera head and other parts are often autoclavable or wipeable to meet the highest hygiene standards.

Applications:

The OTV-S7H-1D-F08E camera is used for various medical procedures, including:

Laparoscopic surgeries (e.g., gallbladder removal, appendectomies, hernia repair)

Endoscopic procedures (e.g., gastrointestinal examinations)

Thoracic surgeries

Urological surgeries

Orthopedic and spinal surgeries

Plastic and reconstructive surgeries

User Interface:

The camera is part of the EVIS EXERA III system, which comes with an easy-to-use interface that provides quick access to camera settings, image adjustments, and video outputs.

Summary of Key Specifications:

Resolution: Full HD (1920 x 1080 pixels)

Sensor: CMOS sensor for high-quality imaging

Camera Type: High-definition video camera system for endoscopy and laparoscopy

Field of View: Wide field of view for effective visualization

Compatibility: Works with Olympus EVIS EXERA III system, including endoscopes and video processors

Image Quality: Enhanced color reproduction, brightness, and contrast

Ergonomics: Compact, lightweight, and user-friendly camera head for comfort during procedures

Output: Supports video output to monitors and recording systems for documentation and teaching

Durability: Designed for repeated use with sterilization options (autoclavable or wipeable)

Applications: Used in laparoscopy, endoscopy, thoracoscopy, urology, orthopedic surgery, and more

Conclusion:

The Olympus OTV-S7H-1D-F08E camera system is an advanced Full HD video camera that provides exceptional image clarity for endoscopic and laparoscopic procedures. It integrates seamlessly with the EVIS EXERA III system and supports high-definition imaging, enhancing visualization during complex surgeries. With its ergonomic design, compatibility with Olympus light sources and processors, and easy-to-use interface, this camera is an essential tool for medical professionals performing minimally invasive surgeries. Its ability to capture clear, sharp images improves diagnosis and surgical outcomes, making it an integral part of modern surgical practices.
