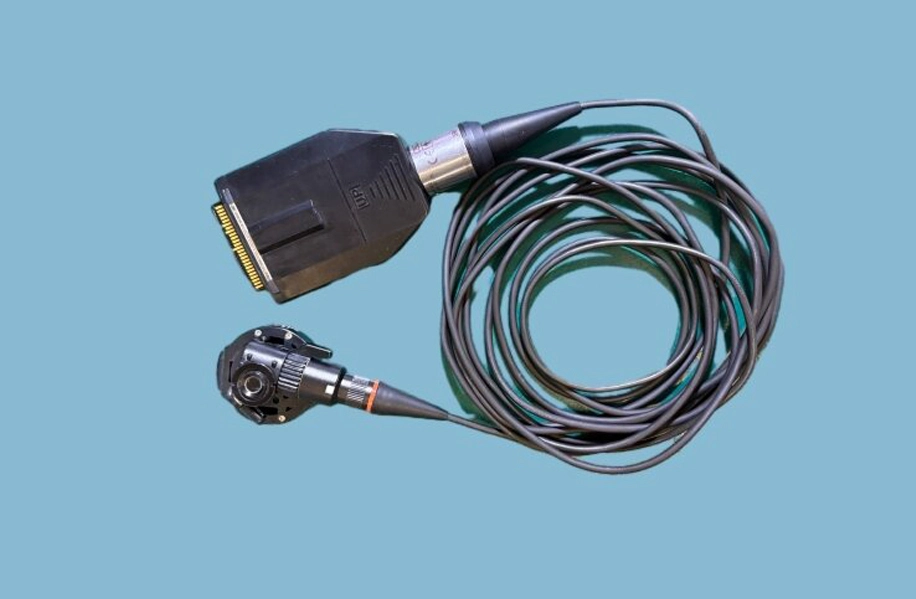

Olympus OTV-S7H-1D-L08E camera

Key Specifications of Olympus OTV-S7H-1D-L08E camera

Camera Type:

High-Definition Video Camera: The OTV-S7H-1D-L08E is a high-definition video camera used for endoscopy and laparoscopy. It is designed to provide clear and precise imaging, helping clinicians during minimally invasive surgical procedures.

Resolution:

The camera offers Full HD resolution (1920 x 1080 pixels), providing high-quality images with enhanced clarity, detail, and accuracy. This resolution is essential for clear visualization of the internal structures during diagnostic and therapeutic procedures.

Sensor Technology:

The OTV-S7H-1D-L08E camera features a CMOS sensor, which ensures high image quality with improved color accuracy, brightness, and contrast, even in low-light conditions. This sensor helps provide clear visualization during procedures that require optimal lighting conditions.

Camera Head Design:

The camera head is designed to be lightweight and ergonomic, allowing for easy handling during long procedures. It is compatible with Olympus endoscopes and laparoscopes, providing seamless integration for various types of medical procedures.

The camera head may have focus adjustments, allowing for clearer images of different tissues or areas within the body.

Image Quality:

Enhanced Color Reproduction: The camera offers excellent color fidelity, ensuring accurate representation of tissues and organs. This is essential for successful surgery and accurate diagnosis.

High Brightness and Contrast: The camera system allows for enhanced brightness and contrast, providing high visibility in various surgical environments.

Field of View:

The camera has a wide field of view, which is essential for laparoscopic and endoscopic procedures. This wider field of view allows the surgeon to visualize more of the surgical area at once, improving the efficiency and precision of the procedure.

Light Source Compatibility:

The OTV-S7H-1D-L08E camera works with the Olympus CLV-190 light source or other compatible light sources within the EVIS EXERA III system. This ensures bright and consistent illumination during procedures, contributing to clearer imaging and visibility.

Camera Control:

The camera features easy-to-use controls, allowing surgeons to adjust settings such as zoom, focus, and brightness on the camera or through the integrated control system.

These controls can often be managed remotely via a foot switch or other system controls, allowing the clinician to adjust settings without interrupting the procedure.

Video Output:

The camera system is compatible with various video output formats and supports HDMI or DVI connections, ensuring that high-quality video can be displayed on large surgical monitors or recorded for documentation and teaching purposes.

The output provides sharp and clear images, allowing the surgical team to visualize internal structures on high-definition monitors.

Sterilization and Durability:

The camera head and other components are designed to be autoclavable (or easily disinfected), ensuring they meet hospital hygiene standards and can be safely reused after sterilization.

Applications:

The OTV-S7H-1D-L08E camera system is used in a wide range of minimally invasive procedures, including:

Laparoscopy (e.g., gallbladder removal, appendectomy, hernia repair)

Endoscopy (e.g., gastrointestinal procedures, colonoscopy)

Thoracoscopy (e.g., chest procedures)

Urological surgeries

Orthopedic and spinal surgeries

Integration with Olympus EVIS EXERA III System:

The camera is designed to work within the Olympus EVIS EXERA III system, which is a modular system that includes video processors, light sources, and other imaging equipment. This system provides optimized lighting, image processing, and video recording, ensuring the best possible image quality during procedures.

Summary of Key Specifications:

Resolution: Full HD (1920 x 1080 pixels)

Sensor Type: CMOS sensor for high-quality imaging

Field of View: Wide field of view for comprehensive visualization

Color Reproduction: Enhanced color accuracy and brightness

Light Source: Compatible with Olympus CLV-190 or other Olympus light sources

Camera Head: Ergonomic and lightweight for ease of use

Control Features: Adjustable zoom, focus, and brightness, often managed via an external control panel

Video Output: HDMI or DVI video output for integration with surgical monitors

Sterilization: Autoclavable design for easy cleaning and reusability

Applications: Laparoscopy, endoscopy, thoracoscopy, urology, orthopedic surgery, and more

Conclusion:

The Olympus OTV-S7H-1D-L08E camera system offers high-definition imaging with enhanced color reproduction and brightness, providing clear and precise visualization during minimally invasive surgeries. Its integration with the Olympus EVIS EXERA III system ensures optimal performance, and its ergonomic design makes it easy to handle during long procedures. The camera’s compatibility with Olympus light sources and video processors ensures bright, high-quality imaging, making it a valuable tool for a wide range of endoscopic and laparoscopic procedures.
